1.3. Knacksack Problem#
import numpy as np
class Knapsack01Problem:
"""This class encapsulates the Knapsack 0-1 Problem from RosettaCode.org
"""
def __init__(self):
# initialize instance variables:
self.items = []
self.maxCapacity = 0
# initialize the data:
self.__initData()
def __len__(self):
"""
:return: the total number of items defined in the problem
"""
return len(self.items)
def __initData(self):
"""initializes the RosettaCode.org knapsack 0-1 problem data
"""
self.items = [
("map", 9, 150),
("compass", 13, 35),
("water", 153, 200),
("sandwich", 50, 160),
("glucose", 15, 60),
("tin", 68, 45),
("banana", 27, 60),
("apple", 39, 40),
("cheese", 23, 30),
("beer", 52, 10),
("suntan cream", 11, 70),
("camera", 32, 30),
("t-shirt", 24, 15),
("trousers", 48, 10),
("umbrella", 73, 40),
("waterproof trousers", 42, 70),
("waterproof overclothes", 43, 75),
("note-case", 22, 80),
("sunglasses", 7, 20),
("towel", 18, 12),
("socks", 4, 50),
("book", 30, 10)
]
self.maxCapacity = 400
def getValue(self, zeroOneList):
"""
Calculates the value of the selected items in the list, while ignoring items that will cause the accumulating weight to exceed the maximum weight
:param zeroOneList: a list of 0/1 values corresponding to the list of the problem's items. '1' means that item was selected.
:return: the calculated value
"""
totalWeight = totalValue = 0
for i in range(len(zeroOneList)):
item, weight, value = self.items[i]
if totalWeight + weight <= self.maxCapacity:
totalWeight += zeroOneList[i] * weight
totalValue += zeroOneList[i] * value
return totalValue
def printItems(self, zeroOneList):
"""
Prints the selected items in the list, while ignoring items that will cause the accumulating weight to exceed the maximum weight
:param zeroOneList: a list of 0/1 values corresponding to the list of the problem's items. '1' means that item was selected.
"""
totalWeight = totalValue = 0
for i in range(len(zeroOneList)):
item, weight, value = self.items[i]
if totalWeight + weight <= self.maxCapacity:
if zeroOneList[i] > 0:
totalWeight += weight
totalValue += value
print("- Adding {}: weight = {}, value = {}, accumulated weight = {}, accumulated value = {}".format(item, weight, value, totalWeight, totalValue))
print("- Total weight = {}, Total value = {}".format(totalWeight, totalValue))
# create a problem instance:
knapsack = Knapsack01Problem()
# creaete a random solution and evaluate it:
randomSolution = np.random.randint(2, size=len(knapsack))
print("Random Solution = ")
print(randomSolution)
knapsack.printItems(randomSolution)
Random Solution =
[0 0 0 0 1 1 1 0 0 1 0 0 1 0 0 0 0 0 0 0 0 0]
- Adding glucose: weight = 15, value = 60, accumulated weight = 15, accumulated value = 60
- Adding tin: weight = 68, value = 45, accumulated weight = 83, accumulated value = 105
- Adding banana: weight = 27, value = 60, accumulated weight = 110, accumulated value = 165
- Adding beer: weight = 52, value = 10, accumulated weight = 162, accumulated value = 175
- Adding t-shirt: weight = 24, value = 15, accumulated weight = 186, accumulated value = 190
- Total weight = 186, Total value = 190
from deap import base
from deap import creator
from deap import tools
from deap import algorithms
import random
import numpy
import matplotlib.pyplot as plt
import seaborn as sns
import knapsack
# problem constants:
# create the knapsack problem instance to be used:
knapsack = knapsack.Knapsack01Problem()
# Genetic Algorithm constants:
POPULATION_SIZE = 50
P_CROSSOVER = 0.9 # probability for crossover
P_MUTATION = 0.1 # probability for mutating an individual
MAX_GENERATIONS = 50
HALL_OF_FAME_SIZE = 1
# set the random seed:
RANDOM_SEED = 42
random.seed(RANDOM_SEED)
toolbox = base.Toolbox()
# create an operator that randomly returns 0 or 1:
toolbox.register("zeroOrOne", random.randint, 0, 1)
# define a single objective, maximizing fitness strategy:
creator.create("FitnessMax", base.Fitness, weights=(1.0,))
# create the Individual class based on list:
creator.create("Individual", list, fitness=creator.FitnessMax)
# create the individual operator to fill up an Individual instance:
toolbox.register("individualCreator", tools.initRepeat, creator.Individual, toolbox.zeroOrOne, len(knapsack))
# create the population operator to generate a list of individuals:
toolbox.register("populationCreator", tools.initRepeat, list, toolbox.individualCreator)
# fitness calculation
def knapsackValue(individual):
return knapsack.getValue(individual), # return a tuple
toolbox.register("evaluate", knapsackValue)
# genetic operators:mutFlipBit
# Tournament selection with tournament size of 3:
toolbox.register("select", tools.selTournament, tournsize=3)
# Single-point crossover:
toolbox.register("mate", tools.cxTwoPoint)
# Flip-bit mutation:
# indpb: Independent probability for each attribute to be flipped
toolbox.register("mutate", tools.mutFlipBit, indpb=1.0/len(knapsack))
# create initial population (generation 0):
population = toolbox.populationCreator(n=POPULATION_SIZE)
# prepare the statistics object:
stats = tools.Statistics(lambda ind: ind.fitness.values)
stats.register("max", numpy.max)
stats.register("avg", numpy.mean)
# define the hall-of-fame object:
hof = tools.HallOfFame(HALL_OF_FAME_SIZE)
# perform the Genetic Algorithm flow with hof feature added:
population, logbook = algorithms.eaSimple(population, toolbox, cxpb=P_CROSSOVER, mutpb=P_MUTATION,
ngen=MAX_GENERATIONS, stats=stats, halloffame=hof, verbose=True)
gen nevals max avg
0 50 805 595.86
1 50 860 704.66
2 48 867 750.42
3 46 905 793.74
4 48 945 826.8
5 46 955 858.18
6 42 1000 897.02
7 44 1002 916
8 46 1030 952.2
9 45 1030 974.14
10 50 1030 985.88
11 48 1030 998.9
12 45 1030 1003.7
13 47 1030 1023.3
14 45 1030 1018.9
15 46 1030 1021.6
16 47 1030 1022.1
17 48 1030 1026.7
18 46 1030 1020
19 43 1030 1018.34
20 46 1030 1024.9
21 46 1030 1016.9
22 45 1030 1022.8
23 46 1030 1027.7
24 44 1030 1021.1
25 49 1030 1025.7
26 44 1030 1015.6
27 42 1030 1017.1
28 44 1030 1017.1
29 43 1030 1023.24
30 50 1030 1025.6
31 46 1030 1025.5
32 48 1030 1027.5
33 46 1030 1030
34 47 1030 1018.74
35 47 1030 1023.2
36 36 1030 1024.1
37 48 1030 1016.1
38 45 1030 1022.6
39 42 1030 1018.7
40 47 1030 1022.94
41 46 1030 1027.1
42 43 1030 1024.7
43 46 1030 1016.1
44 44 1030 1025.7
45 48 1030 1023.3
46 50 1030 1025.6
47 50 1030 1026.1
48 45 1030 1024.6
49 49 1030 1020.9
50 46 1030 1021.9
# print best solution found:
best = hof.items[0]
print("-- Best Ever Individual = ", best)
print("-- Best Ever Fitness = ", best.fitness.values[0])
print("-- Knapsack Items = ")
knapsack.printItems(best)

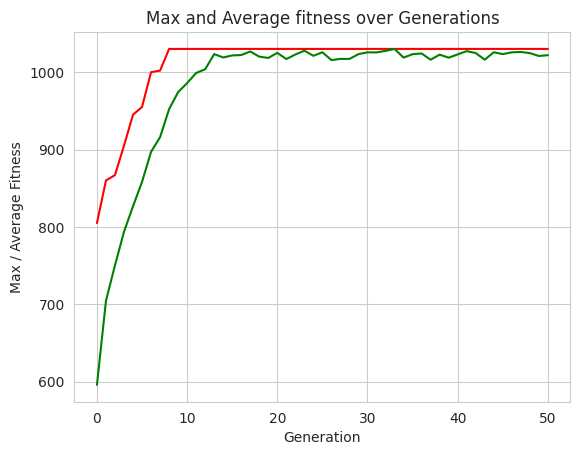

# extract statistics:
maxFitnessValues, meanFitnessValues = logbook.select("max", "avg")
# plot statistics:
sns.set_style("whitegrid")
plt.plot(maxFitnessValues, color='red')
plt.plot(meanFitnessValues, color='green')
plt.xlabel('Generation')
plt.ylabel('Max / Average Fitness')
plt.title('Max and Average fitness over Generations')
plt.show()
-- Best Ever Individual = [1, 1, 1, 1, 1, 0, 1, 0, 0, 0, 1, 0, 0, 0, 0, 1, 1, 1, 1, 0, 1, 1]
-- Best Ever Fitness = 1030.0
-- Knapsack Items =
- Adding map: weight = 9, value = 150, accumulated weight = 9, accumulated value = 150
- Adding compass: weight = 13, value = 35, accumulated weight = 22, accumulated value = 185
- Adding water: weight = 153, value = 200, accumulated weight = 175, accumulated value = 385
- Adding sandwich: weight = 50, value = 160, accumulated weight = 225, accumulated value = 545
- Adding glucose: weight = 15, value = 60, accumulated weight = 240, accumulated value = 605
- Adding banana: weight = 27, value = 60, accumulated weight = 267, accumulated value = 665
- Adding suntan cream: weight = 11, value = 70, accumulated weight = 278, accumulated value = 735
- Adding waterproof trousers: weight = 42, value = 70, accumulated weight = 320, accumulated value = 805
- Adding waterproof overclothes: weight = 43, value = 75, accumulated weight = 363, accumulated value = 880
- Adding note-case: weight = 22, value = 80, accumulated weight = 385, accumulated value = 960
- Adding sunglasses: weight = 7, value = 20, accumulated weight = 392, accumulated value = 980
- Adding socks: weight = 4, value = 50, accumulated weight = 396, accumulated value = 1030
- Total weight = 396, Total value = 1030
